OpenTelemetry

OpenTelemetry is an open standard for instrumenting, processing and collecting observability data.

Buildkite supports sending OpenTelemetry Traces directly from the Buildkite agent, and (in Private Preview) the Buildkite control plane to your OTLP endpoint.

OpenTelemetry tracing from Buildkite agent

See Tracing in the Buildkite Agent.

Required agent flags / environment variables

To propagate traces from the Buildkite control plane through to the agent running the job, include the following CLI flags to buildkite-agent start and include the appropriate environment variables to specify OpenTelemetry collector details.

Flag Environment Variable Value
--tracing-backend BUILDKITE_TRACING_BACKEND opentelemetry
--tracing-propagate-traceparent BUILDKITE_TRACING_PROPAGATE_TRACEPARENT true (default: false)
--tracing-service-name BUILDKITE_TRACING_SERVICE_NAME buildkite-agent (default)
OTEL_EXPORTER_OTLP_ENDPOINT http://otel-collector:4317
OTEL_EXPORTER_OTLP_HEADERS "Authorization=Bearer <token>,x-my-header=value"
OTEL_EXPORTER_OTLP_PROTOCOL grpc (default) or http/protobuf
OTEL_RESOURCE_ATTRIBUTES key1=value1,key2=value2

Note: http/protobuf protocol is only supported on Buildkite agent v3.101.0 or newer.

See OpenTelemetry SDK documentation for more information on available environment variables.

Propagating traces to Buildkite agents

Propagating trace spans from the OpenTelemetry Notification service requires Buildkite agent v3.100 or newer, and the --tracing-propagate-traceparent flag or equivalent environment variable.

Buildkite hosted agents

To export OpenTelemetry traces from hosted agents, this currently requires using a custom Agent Image with the following Environment variables set. Custom images can be created in Cluster settings, and is currently supported for Linux only.

# this is the same as --tracing-backend opentelemetry
ENV BUILDKITE_TRACING_BACKEND="opentelemetry"

# this is the same as --tracing-propagate-traceparent
ENV BUILDKITE_TRACING_PROPAGATE_TRACEPARENT="true"

# service name is configurable
ENV OTEL_SERVICE_NAME="buildkite-agent"

# http/protobuf available on Buildkite agent v3.101.0 or newer
ENV OTEL_EXPORTER_OTLP_PROTOCOL="grpc"

# the gRPC transport requires a port to be specified in the URL
ENV OTEL_EXPORTER_OTLP_ENDPOINT="http://otel-collector:4317"

# authentication of traces is done via tokens in headers
ENV OTEL_EXPORTER_OTLP_HEADERS="Authorization=Bearer <token>,x-my-header=value"

OpenTelemetry tracing notification service

Preview feature

OpenTelemetry Tracing Notification Service is currently in Private Preview. Please contact support@buildkite.com or your account team for access.

To provide a build-wide view of Build performance, enable the OpenTelemetry Tracing

Creating a new service

Create a new OpenTelemetry Notification Service in your organization's Notification Services settings (under Integrations).

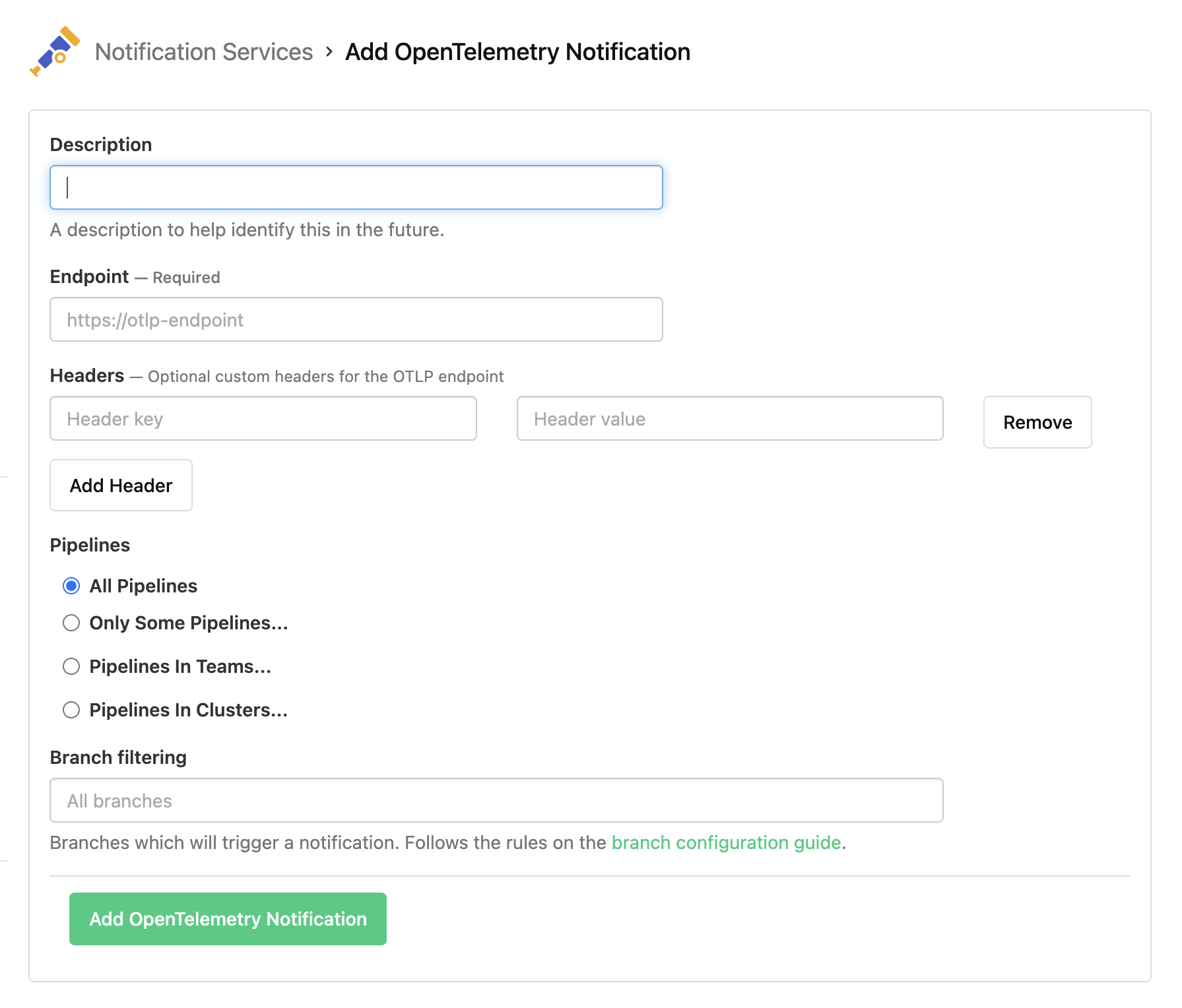

Screenshot of OpenTelemetry Notification Service settings

Endpoint

Please provide the base URL for your OTLP endpoint. Do not include the /v1/traces path as that automatically appended by the Buildkite OpenTelemetry exporter.

Limitations

  • We currently only support the OTLP/HTTP binary protobuf encoding.
  • We currently only support sending trace data, but may introduce other OpenTelemetry signals in the future.
  • The endpoint must be accessible over the internet. Contact support@buildkite.com if you would like to send traces to a AWS PrivateLink endpoint.

Trace structure

The following attributes are included in OpenTelemetry traces from the Buildkite notification service:

Resource attributes

Resource attributes are included in all spans and provide context about the organization, pipeline, and build:

Key Description
service.name Service name (configurable, defaults to buildkite)
buildkite.organization.slug Organization slug
buildkite.organization.name Organization name
buildkite.organization.id Organization ID
buildkite.pipeline.slug Pipeline slug
buildkite.pipeline.name Pipeline name
buildkite.pipeline.id Pipeline ID
buildkite.pipeline.repo Pipeline repository URL
buildkite.pipeline.graphql_id Pipeline GraphQL ID

Span attributes

Span attributes are specific to certain span types:

Key Spans Description
buildkite.build.number All Build number
buildkite.build.commit All Build commit SHA
buildkite.build.message All Build commit message
buildkite.build.branch All Build branch
buildkite.build.source All Build source (ui, api, webhook, etc.)
buildkite.build.graphql_id All Build GraphQL ID
buildkite.build.creator.id All Build creator ID
buildkite.build.creator.email All Build creator email
buildkite.build.creator.name All Build creator name
buildkite.build.creator.graphql_id All Build creator GraphQL ID
buildkite.build.state buildkite.build, buildkite.build.stage Build state (running, passed, failed, etc.)
buildkite.build.blocked_state buildkite.build, buildkite.build.stage Build blocked state (if blocked)
buildkite.build.stage buildkite.build.stage, buildkite.job, buildkite.step Build stage/phase number
buildkite.step.id buildkite.job, buildkite.step Step ID
buildkite.step.key buildkite.job, buildkite.step Step key
buildkite.step.command buildkite.job, buildkite.step Step command script
buildkite.step.label buildkite.job, buildkite.step Step label
buildkite.job.id buildkite.job Job ID
buildkite.job.graphql_id buildkite.job Job GraphQL ID
buildkite.job.type buildkite.job Job type (script, manual, waiter, etc.)
buildkite.job.label buildkite.job Job label/name
buildkite.job.command buildkite.job Job command
buildkite.job.agent_query_rules buildkite.job Job agent query rules
buildkite.job.exit_status buildkite.job Job exit status
buildkite.job.passed buildkite.job Whether job passed
buildkite.job.soft_failed buildkite.job Whether job soft failed
buildkite.job.state buildkite.job Job state
buildkite.job.runnable_at buildkite.job When job became runnable
buildkite.job.started_at buildkite.job When job started
buildkite.job.finished_at buildkite.job When job finished
buildkite.job.wait_time_ms buildkite.job Job wait time in milliseconds
buildkite.job.unblocked_by buildkite.job User who unblocked job
buildkite.job.retried_in_job_id buildkite.job ID of retry job (if retried)
buildkite.job.signal_reason buildkite.job Signal reason (if terminated by signal)
buildkite.agent.name buildkite.job Agent name
buildkite.agent.id buildkite.job Agent ID
buildkite.agent.queue buildkite.job Agent queue
buildkite.agent.meta_data buildkite.job Agent metadata
error.type All (when error status) Error type description

Headers

Add any additional HTTP headers to the request. Depending on the destination, you may need to specify API keys or other headers to influence the behaviour of the downstream collector. Values for headers are always stored encrypted server-side.

Here are some common examples.

Bearer token

Key: Authorization Value: Bearer <your-token>

See Bearer Token example for example OpenTelemetry Collector configuration.

Basic auth

First, create a base64 encoded string of the username and password separated by a colon.

echo -n "${USER}:${PASSWORD}" | base64

Key: Authorization Value: Basic <base64 encoded ${USER}:${PASSWORD})>

See Basic Authentication example for example OpenTelemetry Collector configuration.

Honeycomb

Set the Endpoint to https://api.honeycomb.io, or https://api.eu1.honeycomb.io if your Honeycomb team is in the EU instance.

Add the required header:

Key Value
x-honeycomb-team <Honeycomb API key>

For more information, see the honeycomb documentation: https://docs.honeycomb.io/send-data/opentelemetry/#using-the-honeycomb-opentelemetry-endpoint

Datadog agent-less OpenTelemetry

Endpoint: https://trace.agent.datadoghq.com/api/v0.2/traces

Add the required headers:

Key Value
dd-protocol otlp
dd-api-key <Datadog API key>
dd-otlp-source ${YOUR_SITE}

Replace ${YOUR_SITE} with the organization name you received from Datadog.

For more information, see the Datadog documentation:

https://docs.datadoghq.com/opentelemetry/setup/agentless/traces/

Datadog APM via OpenTelemetry collector

See Bearer token Datadog example for more information on forwarding traces to Datadog APM using the Datadog exporter.

Computing metrics from OpenTelemetry traces

The OpenTelemetry collector can be used to process incoming trace spans and generate custom metrics on the fly using the signaltometrics processor, which can be stored in metric stores like Prometheus or InfluxDB.

See signaltometrics example

OpenTelemetry collector

The OpenTelemetry collector is an open source service for collecting, exporting and processing telemetry signals.

See collector-config for examples of OpenTelemetry collector configuration.

If using the otel/opentelemetry-collector-contrib Docker image, you can configure the collector by mounting the your config file at /etc/otelcol-contrib/config.yaml or by overriding the command to --config=env:OTEL_CONFIG and setting the OTEL_CONFIG environment variable to the contents of your config file.

Consult the Deployment guide in the OpenTelemetry documentation for more information about hosting the collector.

The OpenTelemetry collector also supports many downstream data stores via exporters including StatsD, Prometheus, Kafka, Tempo, OTLP as well as many other observability tools and vendors. See the OpenTelemetry registry for a more complete list of supported exporters.

References

Validating OpenTelemetry collector configuration

otelcol validate lets you validate your collector configuration.

For example, to validate one of the example configuration files in examples repository, say basic-auth-debug.yml you could run the following command:

docker run --rm -it -v $(pwd)/collector-config:/config otel/opentelemetry-collector-contrib validate --config=/config/basic-auth-debug.yml && echo "config valid"

Or for a configuration file like bearer-token-auth-datadog.yml that references environment variables, you would run the following command, noting the -e flags to provide the environment variables:

docker run --rm -e DD_API_KEY=abcd -e OTLP_HTTP_BEARER_TOKEN=example -it -v $(pwd)/collector-config:/config otel/opentelemetry-collector-contrib validate --config=/config/bearer-token-auth-datadog.yml && echo "config valid"
config valid

There is also an online validation tool available at https://www.otelbin.io/
