buildkite-agent start

The Buildkite Agent's start command is used to manually start an agent and register it with Buildkite.

Starting an agent

Usage

buildkite-agent start [options...]

Description

When a job is ready to run it will call the "bootstrap-script" and pass it all the environment variables required for the job to run. This script is responsible for checking out the code, and running the actual build script defined in the pipeline.

The agent will run any jobs within a PTY (pseudo terminal) if available.

Example

$ buildkite-agent start --token xxx

Options

--config value #

Path to a configuration file
Environment variable: $BUILDKITE_AGENT_CONFIG

--name value #

The name of the agent
Environment variable: $BUILDKITE_AGENT_NAME

--priority value #

The priority of the agent (higher priorities are assigned work first)
Environment variable: $BUILDKITE_AGENT_PRIORITY

--acquire-job value #

Start this agent and only run the specified job, disconnecting after it's finished
Environment variable: $BUILDKITE_AGENT_ACQUIRE_JOB

--disconnect-after-job #

Disconnect the agent after running exactly one job. When used in conjunction with the `--spawn` flag, each worker booted will run exactly one job
Environment variable: $BUILDKITE_AGENT_DISCONNECT_AFTER_JOB

--disconnect-after-idle-timeout value #

The maximum idle time in seconds to wait for a job before disconnecting. The default of 0 means no timeout (default: 0)
Environment variable: $BUILDKITE_AGENT_DISCONNECT_AFTER_IDLE_TIMEOUT

--cancel-grace-period value #

The number of seconds a canceled or timed out job is given to gracefully terminate and upload its artifacts (default: 10)
Environment variable: $BUILDKITE_CANCEL_GRACE_PERIOD

--enable-job-log-tmpfile #

Store the job logs in a temporary file `BUILDKITE_JOB_LOG_TMPFILE` that is accessible during the job and removed at the end of the job
Environment variable: $BUILDKITE_ENABLE_JOB_LOG_TMPFILE

--shell value #

The shell command used to interpret build commands, e.g /bin/bash -e -c (default: "/bin/bash -e -c")
Environment variable: $BUILDKITE_SHELL

--tags value #

A comma-separated list of tags for the agent (for example, "linux" or "mac,xcode=8")
Environment variable: $BUILDKITE_AGENT_TAGS

--tags-from-host #

Include tags from the host (hostname, machine-id, os)
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_HOST

--tags-from-ec2-meta-data value #

Include the default set of host EC2 meta-data as tags (instance-id, instance-type, ami-id, and instance-life-cycle)
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_EC2_META_DATA

--tags-from-ec2-meta-data-paths value #

Include additional tags fetched from EC2 meta-data using tag & path suffix pairs, e.g "tag_name=path/to/value"
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_EC2_META_DATA_PATHS

--tags-from-ec2-tags #

Include the host's EC2 tags as tags
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_EC2_TAGS

--tags-from-gcp-meta-data value #

Include the default set of host Google Cloud instance meta-data as tags (instance-id, machine-type, preemptible, project-id, region, and zone)
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_GCP_META_DATA

--tags-from-gcp-meta-data-paths value #

Include additional tags fetched from Google Cloud instance meta-data using tag & path suffix pairs, e.g "tag_name=path/to/value"
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_GCP_META_DATA_PATHS

--tags-from-gcp-labels #

Include the host's Google Cloud instance labels as tags
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_GCP_LABELS

--wait-for-ec2-tags-timeout value #

The amount of time to wait for tags from EC2 before proceeding (default: 10s)
Environment variable: $BUILDKITE_AGENT_WAIT_FOR_EC2_TAGS_TIMEOUT

--wait-for-ec2-meta-data-timeout value #

The amount of time to wait for meta-data from EC2 before proceeding (default: 10s)
Environment variable: $BUILDKITE_AGENT_WAIT_FOR_EC2_META_DATA_TIMEOUT

--wait-for-gcp-labels-timeout value #

The amount of time to wait for labels from GCP before proceeding (default: 10s)
Environment variable: $BUILDKITE_AGENT_WAIT_FOR_GCP_LABELS_TIMEOUT

--git-clone-flags value #

Flags to pass to the "git clone" command (default: "-v")
Environment variable: $BUILDKITE_GIT_CLONE_FLAGS

--git-clean-flags value #

Flags to pass to "git clean" command (default: "-ffxdq")
Environment variable: $BUILDKITE_GIT_CLEAN_FLAGS

--git-fetch-flags value #

Flags to pass to "git fetch" command (default: "-v --prune")
Environment variable: $BUILDKITE_GIT_FETCH_FLAGS

--git-clone-mirror-flags value #

Flags to pass to the "git clone" command when used for mirroring (default: "-v")
Environment variable: $BUILDKITE_GIT_CLONE_MIRROR_FLAGS

--git-mirrors-path value #

Path to where mirrors of git repositories are stored
Environment variable: $BUILDKITE_GIT_MIRRORS_PATH

--git-mirrors-lock-timeout value #

Seconds to lock a git mirror during clone, should exceed your longest checkout (default: 300)
Environment variable: $BUILDKITE_GIT_MIRRORS_LOCK_TIMEOUT

--git-mirrors-skip-update #

Skip updating the Git mirror
Environment variable: $BUILDKITE_GIT_MIRRORS_SKIP_UPDATE

--bootstrap-script value #

The command that is executed for bootstrapping a job, defaults to the bootstrap sub-command of this binary
Environment variable: $BUILDKITE_BOOTSTRAP_SCRIPT_PATH

--build-path value #

Path to where the builds will run from
Environment variable: $BUILDKITE_BUILD_PATH

--hooks-path value #

Directory where the hook scripts are found
Environment variable: $BUILDKITE_HOOKS_PATH

--plugins-path value #

Directory where the plugins are saved to
Environment variable: $BUILDKITE_PLUGINS_PATH

--timestamp-lines #

Prepend timestamps on each line of output.
Environment variable: $BUILDKITE_TIMESTAMP_LINES

--health-check-addr value #

Start an HTTP server on this addr:port that returns whether the agent is healthy, disabled by default
Environment variable: $BUILDKITE_AGENT_HEALTH_CHECK_ADDR

--no-pty #

Do not run jobs within a pseudo terminal
Environment variable: $BUILDKITE_NO_PTY

--no-ssh-keyscan #

Don't automatically run ssh-keyscan before checkout
Environment variable: $BUILDKITE_NO_SSH_KEYSCAN

--no-command-eval #

Don't allow this agent to run arbitrary console commands, including plugins
Environment variable: $BUILDKITE_NO_COMMAND_EVAL

--no-plugins #

Don't allow this agent to load plugins
Environment variable: $BUILDKITE_NO_PLUGINS

--no-plugin-validation #

Don't validate plugin configuration and requirements
Environment variable: $BUILDKITE_NO_PLUGIN_VALIDATION

--no-local-hooks #

Don't allow local hooks to be run from checked out repositories
Environment variable: $BUILDKITE_NO_LOCAL_HOOKS

--no-git-submodules #

Don't automatically checkout git submodules [$BUILDKITE_NO_GIT_SUBMODULES, $BUILDKITE_DISABLE_GIT_SUBMODULES]
Environment variable: $BUILDKITE_NO_GIT_SUBMODULES

--metrics-datadog #

Send metrics to DogStatsD for Datadog
Environment variable: $BUILDKITE_METRICS_DATADOG

--metrics-datadog-host value #

The dogstatsd instance to send metrics to using udp (default: "127.0.0.1:8125")
Environment variable: $BUILDKITE_METRICS_DATADOG_HOST

--metrics-datadog-distributions #

Use Datadog Distributions for Timing metrics
Environment variable: $BUILDKITE_METRICS_DATADOG_DISTRIBUTIONS

--log-format value #

The format to use for the logger output (default: "text")
Environment variable: $BUILDKITE_LOG_FORMAT

--spawn value #

The number of agents to spawn in parallel (default: 1)
Environment variable: $BUILDKITE_AGENT_SPAWN

--spawn-with-priority #

Assign priorities to every spawned agent (when using --spawn) equal to the agent's index
Environment variable: $BUILDKITE_AGENT_SPAWN_WITH_PRIORITY

--cancel-signal value #

The signal to use for cancellation (default: "SIGTERM")
Environment variable: $BUILDKITE_CANCEL_SIGNAL

--tracing-backend value #

Enable tracing for build jobs by specifying a backend, "datadog" or "opentelemetry" (experimental, requires --experiment opentelemetry-tracing)
Environment variable: $BUILDKITE_TRACING_BACKEND

--token value #

Your account agent token
Environment variable: $BUILDKITE_AGENT_TOKEN

--endpoint value #

The Agent API endpoint (default: "https://agent.buildkite.com/v3")
Environment variable: $BUILDKITE_AGENT_ENDPOINT

--no-http2 #

Disable HTTP2 when communicating with the Agent API.
Environment variable: $BUILDKITE_NO_HTTP2

--debug-http #

Enable HTTP debug mode, which dumps all request and response bodies to the log
Environment variable: $BUILDKITE_AGENT_DEBUG_HTTP

--no-color #

Don't show colors in logging
Environment variable: $BUILDKITE_AGENT_NO_COLOR

--debug #

Enable debug mode. Synonym for `--log-level debug`. Takes precedence over `--log-level`
Environment variable: $BUILDKITE_AGENT_DEBUG

--log-level value #

Set the log level for the agent, making logging more or less verbose. Defaults to notice. Allowed values are: debug, info, error, warn, fatal (default: "notice")
Environment variable: $BUILDKITE_AGENT_LOG_LEVEL

--experiment value #

Enable experimental features within the buildkite-agent
Environment variable: $BUILDKITE_AGENT_EXPERIMENT

--profile value #

Enable a profiling mode, either cpu, memory, mutex or block
Environment variable: $BUILDKITE_AGENT_PROFILE

--redacted-vars value #

Pattern of environment variable names containing sensitive values (default: "*_PASSWORD", "*_SECRET", "*_TOKEN", "*_ACCESS_KEY", "*_SECRET_KEY")
Environment variable: $BUILDKITE_REDACTED_VARS

--tags-from-ec2 #

Include the host's EC2 meta-data as tags (instance-id, instance-type, and ami-id)
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_EC2

--tags-from-gcp #

Include the host's Google Cloud instance meta-data as tags (instance-id, machine-type, preemptible, project-id, region, and zone)
Environment variable: $BUILDKITE_AGENT_TAGS_FROM_GCP

Setting tags

Each agent has tags (in 2.x we called this metadata) which can be used to group and target the agents in your build pipelines. This way you're free to dynamically scale your agents and target them based on their capabilities rather than maintaining a static list.

To set an agent's tags you can set it in the configuration file:

tags="docker=true,ruby2=true"

or with the --tags command line flag:

buildkite-agent start --tags "docker=true" --tags "ruby2=true"

or with the BUILDKITE_AGENT_TAGS an environment variable:

env BUILDKITE_AGENT_TAGS="docker=true,ruby2=true" buildkite-agent start

Agent targeting

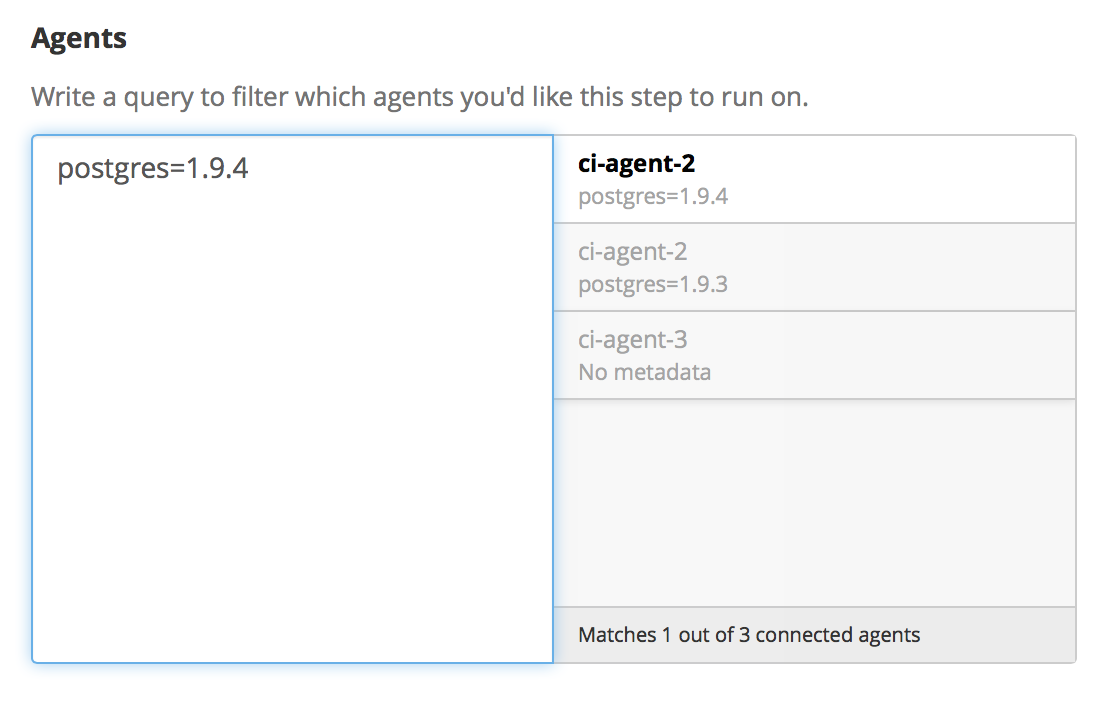

Once you've started agents with tags you can target them in the build pipeline using agent query rules.

Here's an example of targeting agents that are running with the tag postgres and value of 1.9.4:

pipeline.yml
steps:
  - command: "script.sh"
    agents:
      postgres: "1.9.4"

You can also match for any agent with a postgres tag by omitting the value after the = sign, or by using *, for example:

pipeline.yml
steps:
  - command: "script.sh"
    agents:
      postgres: '*'

Partial wildcard matching (for example, postgres=1.9* or postgres=*1.9) is not yet supported.

Setting agent defaults

Use a top-level agents block to set defaults for all steps in a pipeline.

If you specify multiple tags, your build will only run on agents that have all the specified tags.

The queue tag

The queue tag works differently from other tags, and can be used for isolating jobs and agents. See the agent queues documentation for more information about using queues.

If you specify a queue and agent tags, your build will only run on agents that match all of the specified criteria.

Sourcing tags from Amazon Web Services

You can load an Agent's tags from the underlying Amazon EC2 instance using --tags-from-ec2-tags for the instance tags and --tags-from-ec2 to load the EC2 metadata (for example, instance name and machine type).

Sourcing tags from Google Cloud

You can load an Agent's tags from the underlying Google Cloud metadata using --tags-from-gcp.

Run a job on the agent that uploaded it (also known as node affinity)

You can configure your agent and your pipeline steps so that the steps run on the same agent that performed pipeline upload. This is sometimes referred to as "node affinity", but note that what we describe here does not involve Kubernetes (where the term is more widely used).

Normally, we recommend against doing this. The usual practice is to allow jobs to run on whichever agent is available, or to target according to specific criteria (for example, you might want certain jobs to run on a particular operating system). Targeting a specific agent can cause reliability issues (the job can't run if the agent is offline), and can result in work being unevenly distributed between agents (which is inefficient).

First, set the agent hostname tag.

You can do this when starting the agent. This uses the system hostname:

buildkite-agent start --tags "hostname=`hostname`"

Or you can add it to the agent config file, along with any other tags:

tags="hostname=`hostname`"

Then, make sure you are using pipeline upload to upload a pipeline.yml. In Buildkite's YAML steps editor:

steps:
  - command: "buildkite-agent pipeline upload"

Finally, in your pipeline.yml, set hostname: "$BUILDKITE_AGENT_META_DATA_HOSTNAME" on any commands that you want to stick to the agent that uploaded the pipeline.yml. For example:

  - command: "I will stick!"
    agents:
      hostname: "$BUILDKITE_AGENT_META_DATA_HOSTNAME"
  - command: "I might not"

When Buildkite uploads the pipeline, $BUILDKITE_AGENT_META_DATA_HOSTNAME is replaced with the agent's hostname tag value. In effect, the previous example becomes:

  - command: "I will stick!"
    agents:
      hostname: "agents-computer-hostname"
  - command: "I might not"

This means the first step in the example can only run on an agent with the hostname "agents-computer-hostname". This is the hostname of the agent that uploaded the job. The second step may run on the same agent, or a different one.

Run a single job

--acquire-job value allows you to start an agent and only run the specified job, stopping the agent after it's finished. This means that when you start the agent, instead of it waiting for work, it sends a request to Buildkite to check if it can acquire (self-assign and accept) the job. Once the agent acquires the job, it runs it, then stops the agent when the job is complete.

Getting the job ID for a single job

value is the job ID. There are several ways to find it:

  • Using the Build API's Get a build endpoint. This returns build information, including all jobs in the build.
  • Through the GraphQL API.
  • The BUILDKITE_JOB_ID build environment variable.
  • In outbound job event webhooks.
  • Using the GUI: select a job, and the job ID is the final value in the URL.

When to use

Normally, you don't set up an agent to run a specific job. Instead, you'll have a pool of agents running, waiting for Buildkite to send jobs to them.

--acquire-job is useful if you want to create your own scheduler to run a specific job.
